Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 5
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Max Capacity: |
5 T = 11000lbs |
Tank Diameter: |
250 - 2300 Mm |
Speed Control: |
VFD / Digital Speed Readout |
Adjust Way: |
Automatic Self Aligning |
Packing Way: |
Wooden Case |
Delivery Time: |
10 Days |
Rolls Material: |
Rubber With Steel |
Rolls Width: |
150mm |
Max Capacity: |
5 T = 11000lbs |
Tank Diameter: |
250 - 2300 Mm |
Speed Control: |
VFD / Digital Speed Readout |
Adjust Way: |
Automatic Self Aligning |
Packing Way: |
Wooden Case |
Delivery Time: |
10 Days |
Rolls Material: |
Rubber With Steel |
Rolls Width: |
150mm |

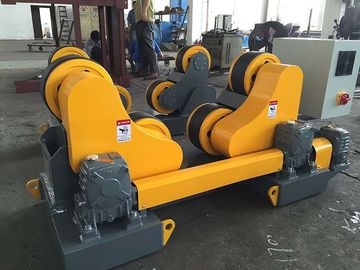

5T Capacity Tank Turning Rolls With Hand Control Box , Foot Pedal ,CE Supported Welding Rotator More products pics.pdf
OVERSEAS AGENT
1. More than 15 years experience so that we have many agency around the world.
2. Just advise us your locaton if you want the after sales service.
3. Sometimes the price will be little higher from our distributor at your local market.
4. If possible,we also can supply you the door to door delivery service.
5. Installation service at your work shop is also available.
Specification
|
Model |
HGZ-5 |
HGZ-10 |
HGZ-20 |
HGZ-30 |
HGZ-40 |
|
Max Capacity |
5 T |
10 T |
20 T |
30 T |
40 T |
|
Roller Diameter (mm) |
250 |
300 |
350 |
350 |
400 |
|
Roller Width (mm) |
100 |
120 |
|||
|
Working Range (mm) |
250-2300 |
320-2800 |
500-3500 |
530-3700 |
600-4200 |
|
Roller Speed (m/h) |
6-60 |
||||
|
Motor Power (kw) |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
|
Option : |
□ Moving wheels □ Wireless Control □ Remote Control |
||||
Applications
1. Several single pipes butting welding.
2. SAW / TIG welding are all supported.
3. We also supply the welding manipulator and flux recovery machine.
Package Range
1. One unit drive and one unit passive consist to ONE SET.
2. All of our rotator will use PU wheels to protect your tanks.
3. If only order one set,we will use woodencase to package.
4. Hand control box / Foot pedal control / Electric control system.
Details Control system and Brand
1. Inverter is from Taida / Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Q : What is your warranty and after sale service ?
A : 1. We have some overseas agence,just advise us your location please. We will give you help.
2. All our equipments with One Year Warranty time , fully test at our work shop before delivery.
3. If you have any questions on the installation , you will get our engineers respond within 24 hours.
Attention please
1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.
5. All our pipe welding rotators have 20% over weight design, but we suggest used on the safe rangs.
6. We have strong delivery team, including the Sea freight and Air transportation. Door to door available.
7. Just advise me your desitination port then we will give you the final CIF price.
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
