120 Ton Pipe Welding Rollers Stands With Rotation Speed 100-1000 Mm/Min

Name: 120 Ton Pipe Welding Rollers Stands With Rotation Speed 100-1000 Mm/Min
Brand: WELDSUCCESS AUTOMATION EQUIPMENT (WUXI) CO., LTD
SKU: HGK-120
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HGK-120

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                120 Ton Pipe Welding Rollers, Pipe Welding Rollers 1000 mm/min, Customized Pipe PU Welding Rollers


Turning Capacity:	120 Ton Maximum	Motor Power:	2*3KW
Roller Size:	Ø500*400mm	Rotation Speed:	100-1000 Mm/min
Adjust Way:	Bolt Adjustment	Roller Wheels:	PU
Vessel Diameter:	800~6000mm	Application:	Wind Tower
Color:	Customized	Warranty:	One Year

Turning Capacity:	120 Ton Maximum
Motor Power:	2*3KW
Roller Size:	Ø500*400mm
Rotation Speed:	100-1000 Mm/min
Adjust Way:	Bolt Adjustment
Roller Wheels:	PU
Vessel Diameter:	800~6000mm
Application:	Wind Tower
Color:	Customized
Warranty:	One Year

120 Ton Pipe Welding Rollers Stands With Rotation Speed 100-1000 Mm/Min

Product Description:

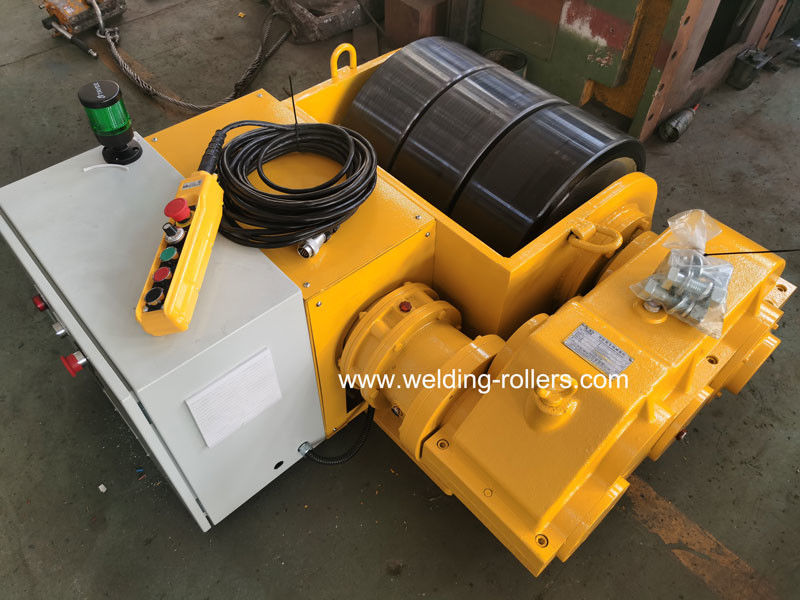

1.120 Ton load capacity welding rotators including one drive unit and one idler unit.
2.Normally we use Diameter 500mm and width 400mm PU wheels, Steel material roller wheels is available for customized.
3.With 2*3kw frequency variable motors, it will ensure the rotation more stable.
4.If the vessels with eccentricity, we will use the brake motor to increase the rotation torque.
5.Standard 120 Ton welding rotator with vessels diameter 6000mm capacity, we also can customized for bigger size according to the end user request.

Features:

1.The pipe welding rollers product has following different series,say, the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.

2.The series conventional pipe welding rollers stand is able to adopt to various diameter of job, by adjust the center distance of rollers, via reserved screw holes or lead screw.

3.Depends on different application, the roller surface has three types,PU/RUBBER/STEEL WHEEL.

4.The pipe welding rollers is mainly used for Pipe Welding ,tank rolls polishing,turning roller painting and tank turning rolls assembly of cylindrical roller shell.

5.The pipe welding turning roller machine can joint control with other equipments.

Technical Parameters:

Model	HGK-120
Turning Capacity	120 ton maximum
Drive Load Capacity	60 ton maximum
Idler Load Capacity	60 ton maximum
Adjust Way	Bolt adjustment
Motor Power	2*3kw
Vessel Diameter	800~6000mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	PU
Roller size	Ø500*400mm
Voltage	440V±10% 60Hz 3Phase
Control system	Remote control 15m cable
Color	Customized
Warranty	1 Year

Applications:

1. Roller center distance could be manually adjusted by reserved screw bolt, so as to suitable for various work piece diameter.

2. Power roller of the welding rotator is driven by double motor. Reducer adopts cycloidal planetary gear reducer or worm reduction gear mode.

3. It can joint control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.

4. Widely used in industries including wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair.

Support and Services:

1. We provide 12month guaranty period for the whole machine quality.
2. During the warranty time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.

4.All Package in wooden case for delivery to avoid damage.

5.It will be placed in an anti-rust coating for extra protection and then covered with a thick foam sheet.

6.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.

FAQ:

Q & A

Q: What is the Brand Name for this product?: A: The Brand Name for this product is Weldsuccess.
Q: What is the Model Number for this product?: A: The Model Number for this product is HGK-100.
Q: Where is this product's Place of Origin?: A: This product's Place of Origin is China.
Q: What certifications does this product have?: A: This product has ISO/CE/CO certifications.
Q: What is the Minimum Order Quantity for this product?: A: The Minimum Order Quantity for this product is 1 set.
